Ring Making Machine
Ring Making Machine
Couldn't load pickup availability

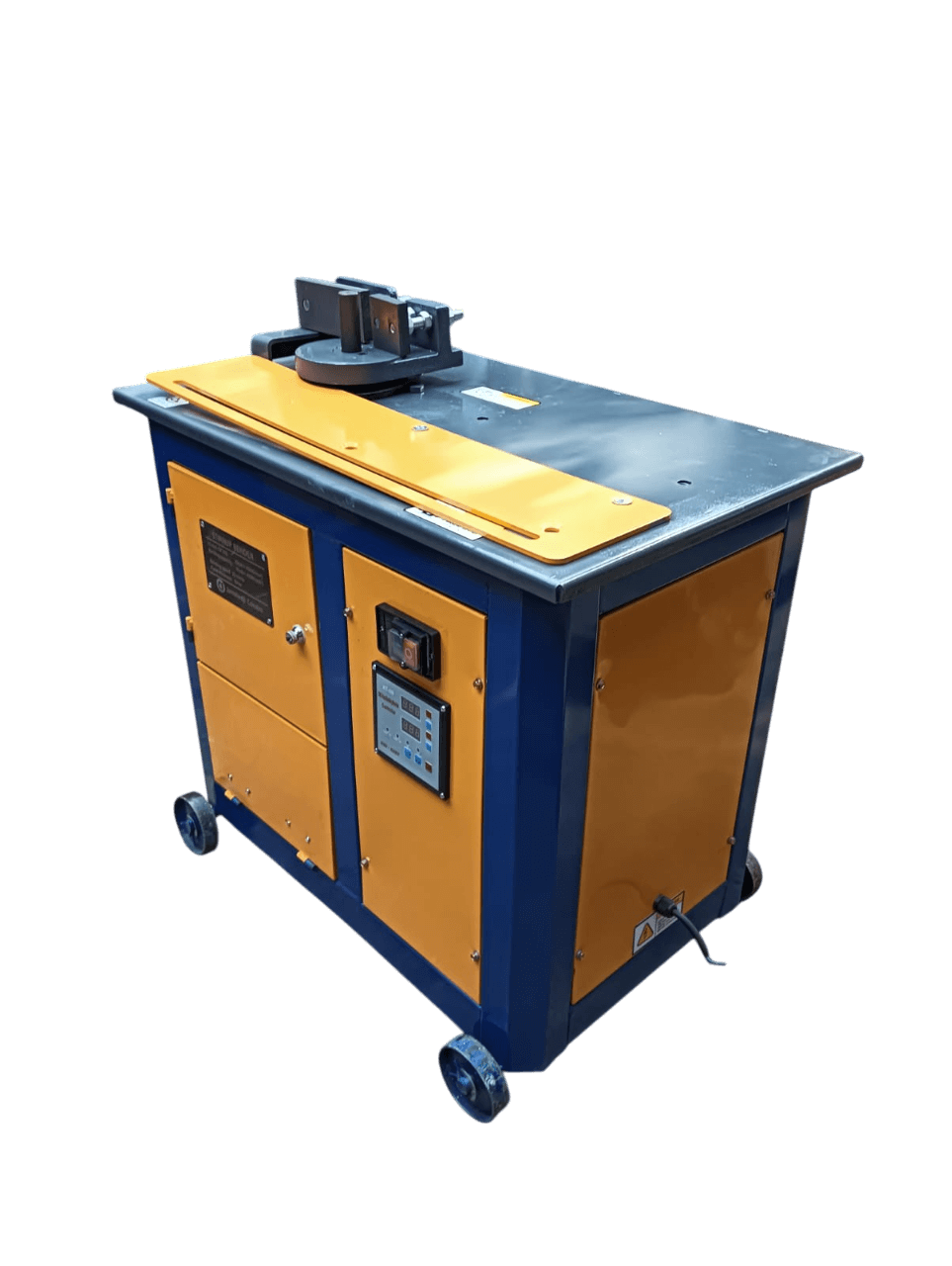

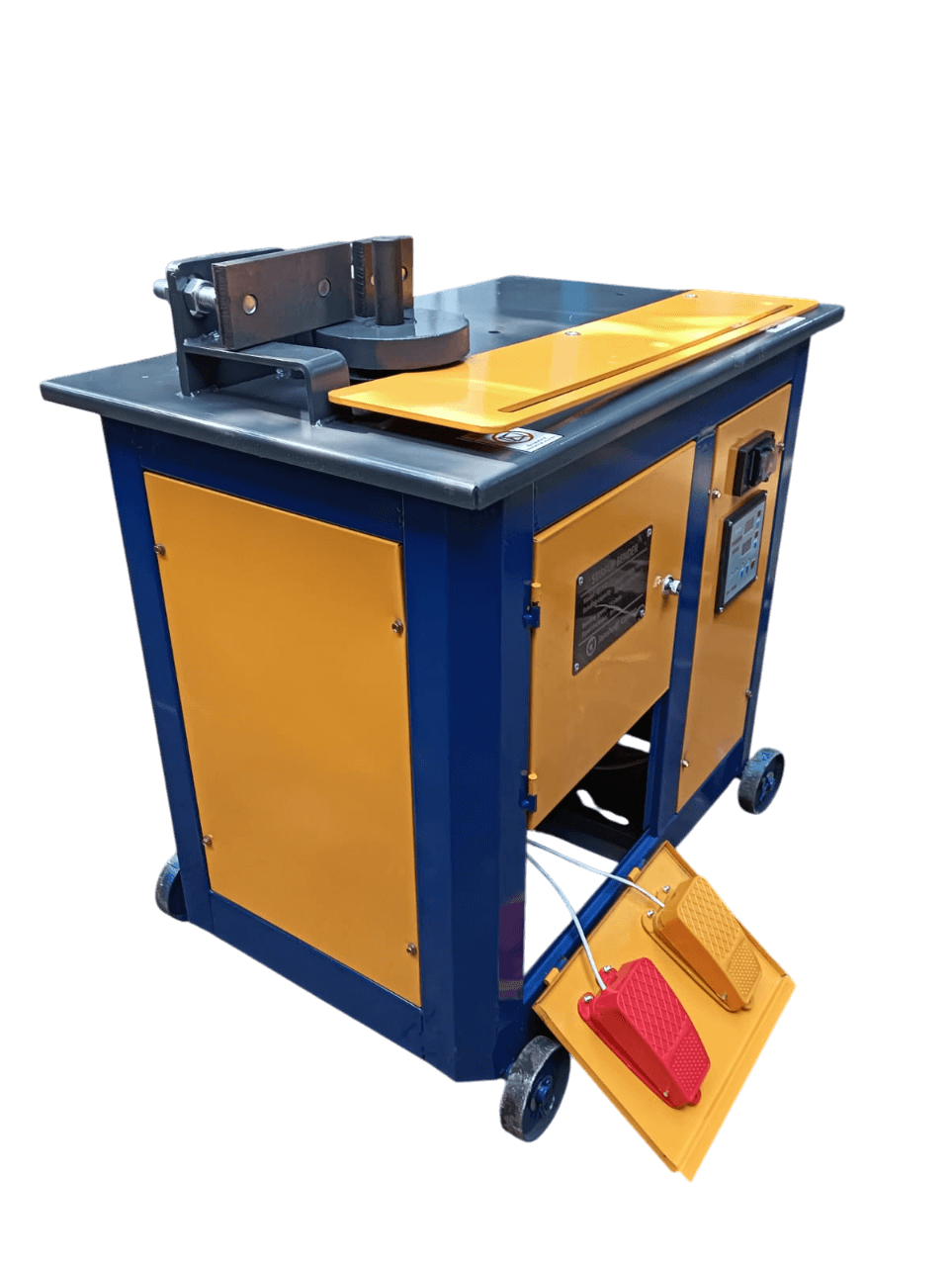

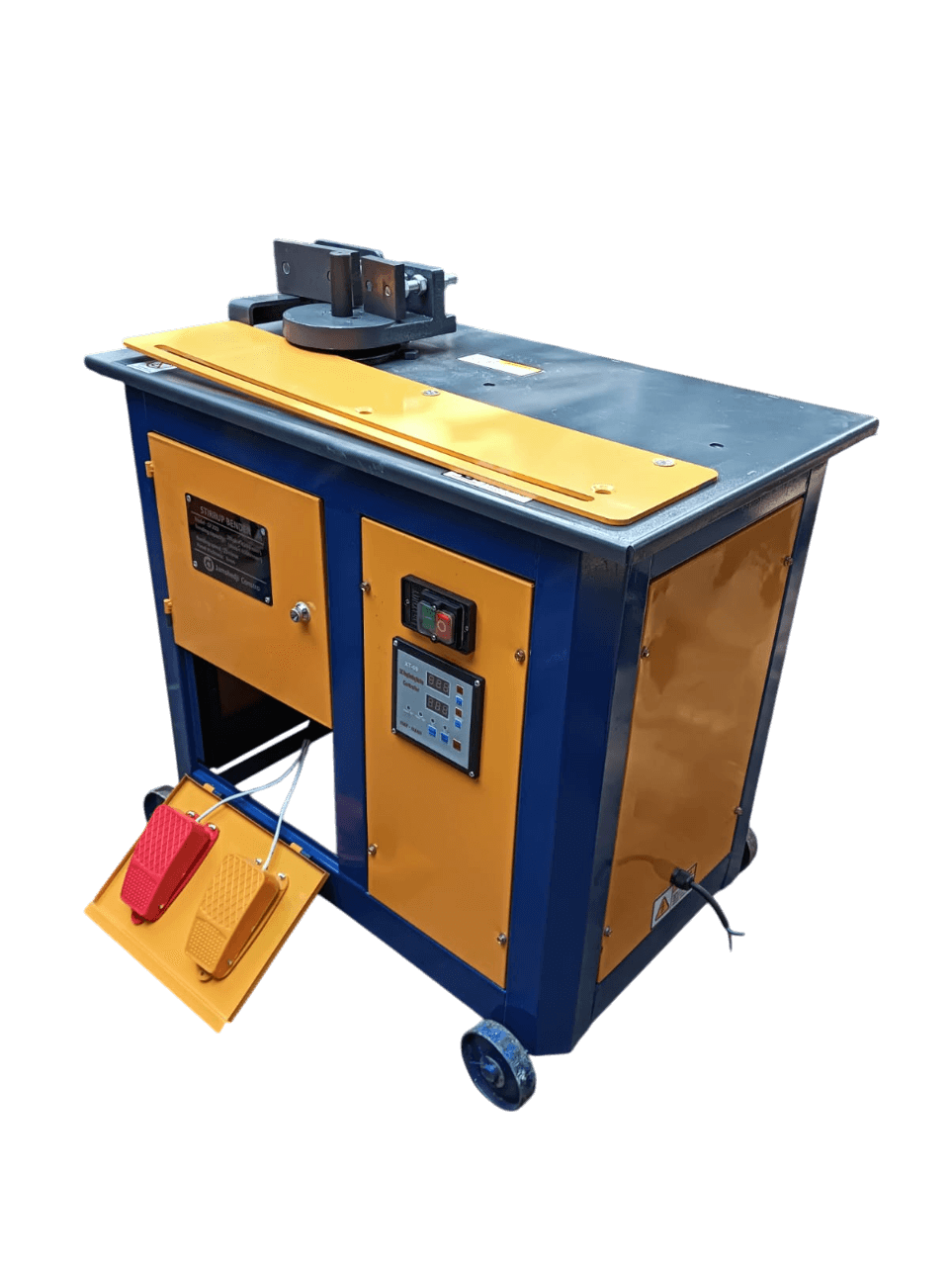

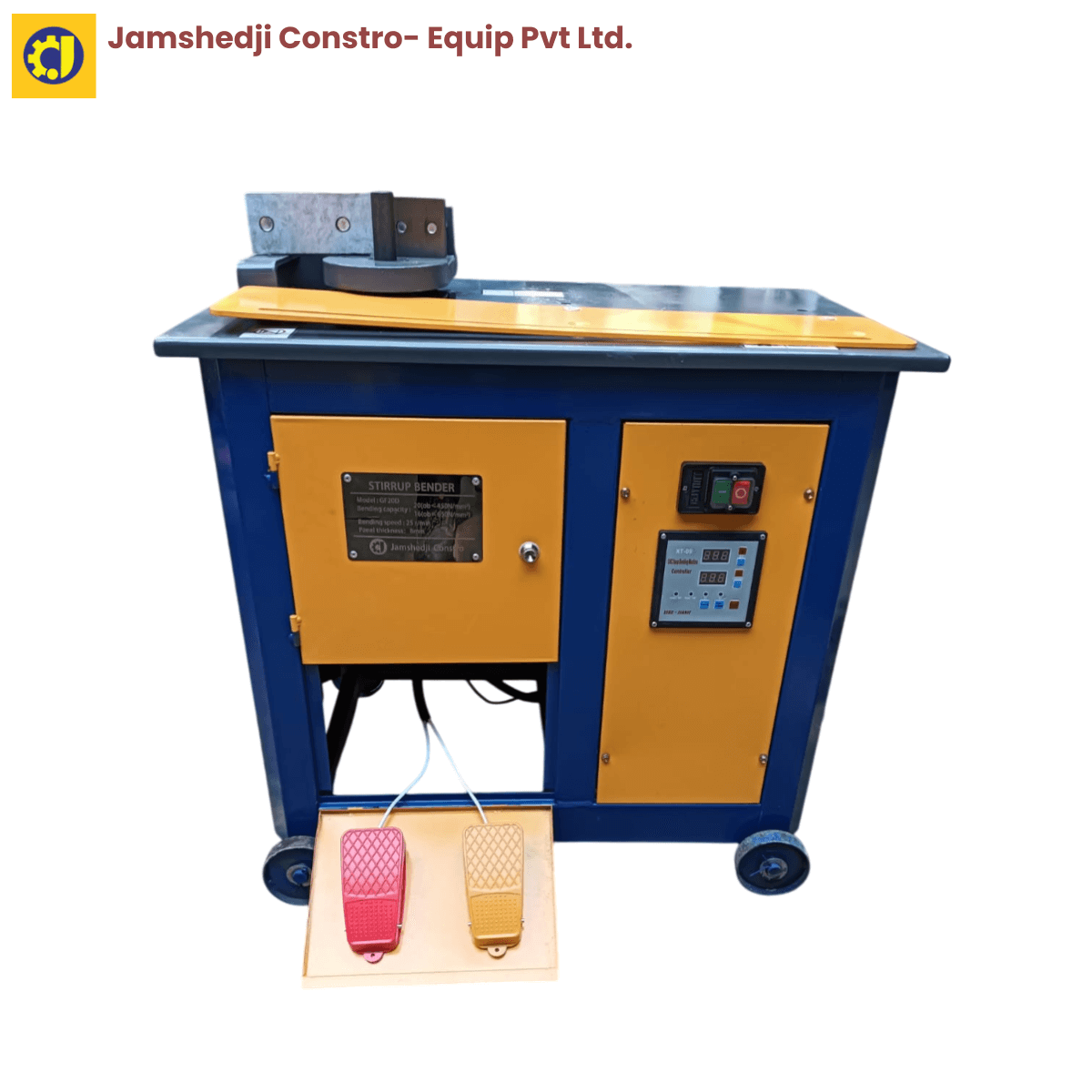

TMT Bar Ring Making Machine – Efficient and Precise Ring Bending for TMT Bars Up to 16mm
The TMT Bar Ring Making Machine from Jamshedji Constro is designed to effortlessly bend TMT bars up to 16mm in diameter into perfect rings. Powered by a 3 HP motor and equipped with advanced magnet sensor technology, this machine ensures high precision, safety, and efficiency in ring production. Ideal for construction projects requiring TMT bar rings, the machine’s durable and reliable design allows for continuous, smooth operation with minimal maintenance.
Key Features:
- Bends TMT bars up to 16mm in diameter into rings
- 3 HP motor for consistent power and performance
- Magnet sensor technology for precise, safe operation
- Compact, durable design for long-lasting use
- Perfect for large-scale construction and industrial projects
Enhance your construction site’s productivity and efficiency with the TMT Bar Ring Making Machine—the reliable choice for high-quality TMT bar ring bending.
Specifications:
Type | Electric |
Working | Stirrup Making |
Round Bar Size | 6-20mm |
TMT Bar Size | 6-16mm |
Power | 2.2kW/3hp |
Voltage | 220v |
Disk | 150*25mm |
Bending Speed | 25r/min |
Movable Blade | 64*64*15mm |
Fixed Blade | 150*64*15mm |
Weight | 90kg |
Dimensions | 800*500*830mm |
Brand | Jamshedji |
